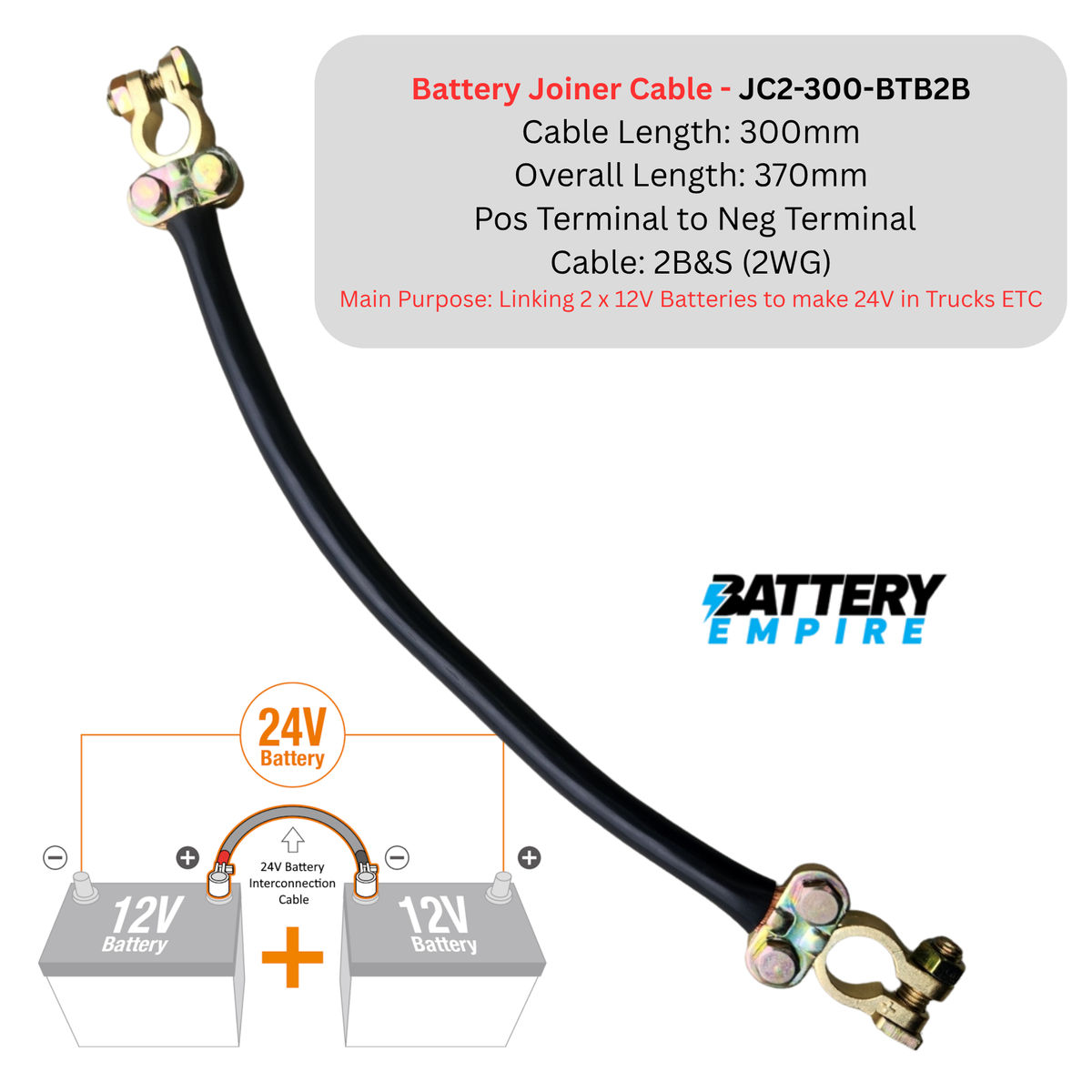

Battery Joiner Cable - JC2-300-BTB2B

Battery Joiner Cable - JC2-300-BTB2B

Heavy-duty battery joiner cable designed for linking 2 x 12V batteries in series to create a 24V battery system.

Ideal for trucks, heavy vehicles, machinery and other 24V applications requiring a short, high-current battery connection.

Specifications:

• Model: JC2-300-BTB2B

• Cable Length: 300mm

• Overall Length: Approx. 370mm

• Cable Size: 2 B&S / 2 AWG

• Terminal Configuration: Positive Battery Terminal to Negative Battery Terminal

• Application: Joining 2 x 12V batteries in series for a 24V system

• Suitable For: Trucks, buses, machinery, commercial vehicles and other 24V battery setups

Built with heavy-duty cable to handle the high current demands found in starting and commercial battery systems.

Common setup:
12V Battery 1 Positive → Vehicle Positive
12V Battery 1 Negative → Joiner Cable → 12V Battery 2 Positive
12V Battery 2 Negative → Vehicle Negative

When connected correctly, the two 12V batteries operate together as a 24V battery bank.
