  • BLUETTI RV5 + B4810 + Epanel + Epad Caravan Power System
1 1

BLUETTI 1 x RV5, 1 x Epad, 1 x Epanel, 1 x B4810

BLUETTI 1 x RV5, 1 x Epad, 1 x Epanel, 1 x B4810

$5,199.00 AUD
$5,199.00 AUD
Sale Sold out
Shipping calculated at checkout.
IMPORTANT! This product will be supplied direct from our distributor's stock. We confirm availability before dispatch, and if an item turns out to be unavailable we'll tell you straight away and refund you in full. Contact us before purchase for current availability!

This BLUETTI RVSolar intelligent combo is a complete 48V caravan power system: the RV5 5-in-1 power hub, a B4810 51.2V 100Ah LiFePO4 battery, the Epanel smart distribution panel and the Epad 10.1-inch touchscreen. It delivers 5,000W of AC power with circuit-level control and monitoring from one screen.

Please note: Installation by a licensed electrician is recommended.

Key Features

  • Complete system: 1 x RV5, 1 x B4810, 1 x Epanel and 1 x Epad
  • 5,000W continuous AC output with 10,000W surge, and 5,120Wh of LiFePO4 storage
  • Epanel smart AC/DC distribution: up to 8 AC circuits and 20 fused DC circuits, with smart-switched circuits
  • Epad 10.1-inch touchscreen shows battery status, power use, charging inputs and system health
  • Up to 1,800W solar, 1,200W alternator and 5,000W shore power charging
  • Battery is IP65 rated with self-heating for cold-weather charging
  • Expandable with additional B4810 batteries

Specifications

Kit contents 1 x RV5 power hub, 1 x B4810 battery, 1 x Epanel, 1 x Epad
System voltage 48V
AC output 5,000W continuous, 230V
Surge power 10,000W
DC output 1,620W, 12V or 24V
Solar input (MPPT) Up to 1,800W
Alternator charging Up to 1,200W
Shore power charging Up to 5,000W
Recharge sources Shore power, solar, vehicle alternator, generator, EV charger (cable sold separately)
Noise level Under 50dB
Dimensions 450 x 500 x 159.9 mm
RV5 dimensions / weight 450 x 500 x 159.9 mm / 14 kg
Battery B4810, 51.2V 100Ah (5,120Wh) LiFePO4
Battery cycle life 6,000+ cycles to 70% capacity
Battery dimensions / weight 608 x 380 x 145 mm / about 46 kg
Epanel AC Up to 50A input; up to 8 circuits rated to 30A each, 4 smart-switched
Epanel DC 10-30V, up to 100A input; 20 fused circuits rated to 20A each, 6 smart-controlled
Epanel dimensions / weight 431.8 x 352.9 x 104.6 mm / 3.5 kg (IP20, indoor use)
Epad screen 10.1-inch colour touchscreen, 800 x 1280
Epad dimensions / weight 247 x 158 x 33.9 mm / 0.67 kg (IP20, indoor use)

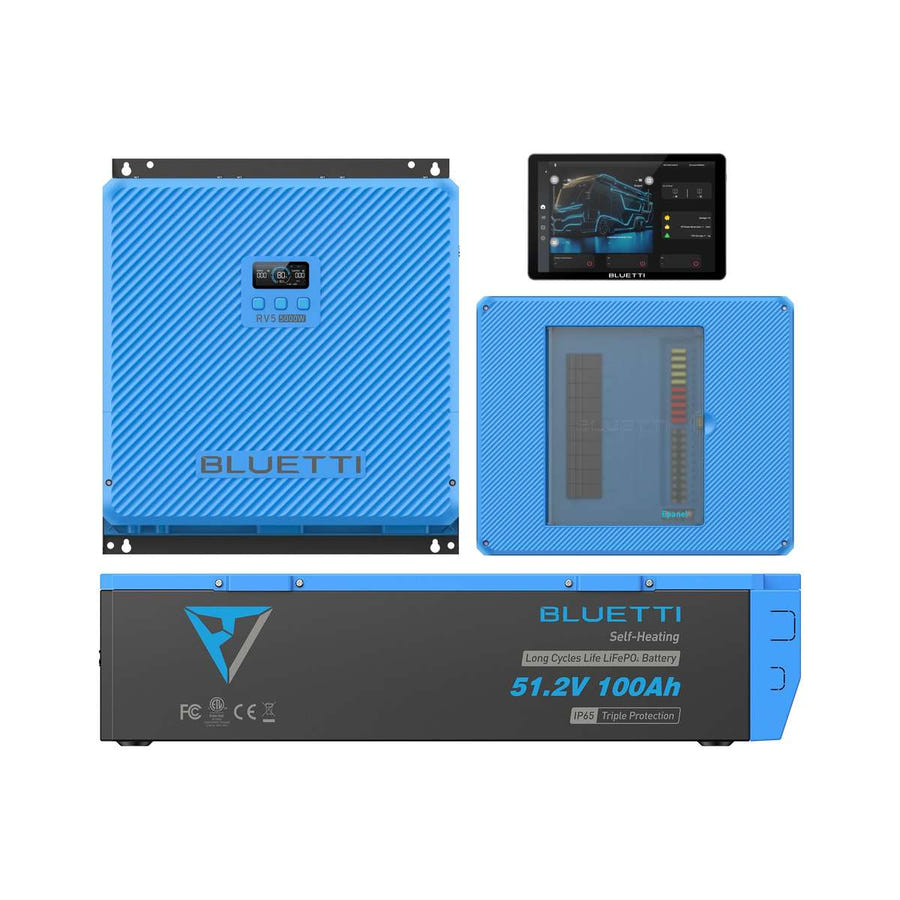

What's in the Box

  • 1 x RV5 power hub
  • 1 x B4810 LiFePO4 battery
  • 1 x Epanel distribution panel with wiring pack
  • 1 x Epad control screen
  • Mounting hardware and user manuals
