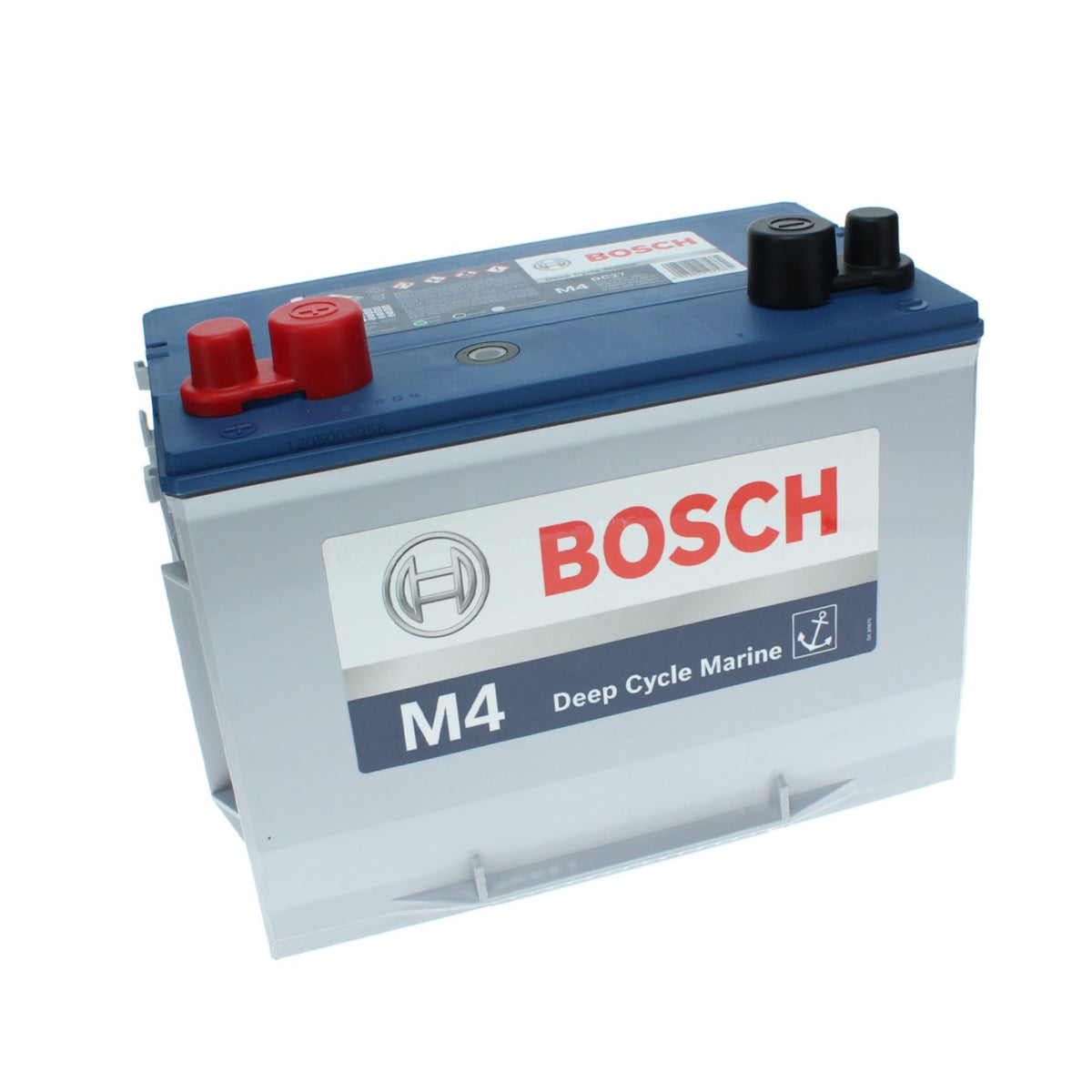

DC27 BOSCH
DC27 BOSCH
Couldn't load pickup availability
| Voltage | 12V |
| Cold Cranking Amps (CCA) | 570 CCA |
| Ah (20 hour rate) | 80.0 Ah |
| Reserve Capacity (RC) | 145 mins |
| Battery technology | Calcium |
| Dimensions (L x W x H) | 320.0 x 172.0 x 203.0 mm |
| Total height | 229.0 mm |
| Weight | 23.7 kg |
| Terminal type | TM |
| Terminal layout / polarity | Left-Hand Positive (+ , -) |
| Assembly | B |
| Base hold down | B7 |
| Warranty period | 12 months |
| Technical datasheet | Download PDF 📄 |
| Brand product identifier | 0092S47075HH0 |
| EAN barcode | 4047025475662 |
Bosch Deep Cycle Marine (DCM) Battery Range
Engineered for demanding marine power requirements, the Bosch Deep Cycle Marine (DCM) range is purpose-built for heavy-duty cycling applications. Delivering 25% longer service life at 50% Depth of Discharge compared to the HCM range, the DCM series combines substantial engine-starting cranking amperage with exceptional reserve capacity to keep all your onboard electrical accessories running smoothly for longer. Constructed with thicker, fibreglass-reinforced plates, a robust grid alloy, and heavy-duty separators, it is designed to withstand the stress of repeated cycling and harsh marine vibrations.
Ideal for boat owners & operators who require:
- ✓ Heavy-duty deep cycling capability with 25% longer service life at 50% discharge vs HCM
- ✓ Superior reserve capacity for high electrical loads alongside dependable engine-starting power
- ✓ Thicker, fibreglass-reinforced plates and heavy-duty separators for extreme vibration resilience
Deep Cycle Marine Highlights
Extended Heavy-Duty Cycling
- • Engineered specifically for severe, repeated deep discharge and recharge duties
- • Delivers 25% longer cycle life at 50% discharge rate compared to standard HCM units
- • High reserve capacity powers refrigeration, winches, sounders, and house electronics
Fibreglass Reinforced Plates
- • Long-lasting full-frame grid design features thicker, fibreglass-reinforced plates
- • High-density active material maintains structural integrity and electrical conductivity
- • Prevents active material shedding under repeated heavy cyclic loading
Enhanced Stress & Vibration Resistance
- • Specialised grid alloy promotes resilience against cyclic degradation and heat
- • Heavy-duty cell separators isolate plates against intense wave pounding and vibrations
- • Tough outer casing guards against physical impact and harsh marine environments
Starting Cranking & Dual Terminals
- • Retains sufficient Cold Cranking Amps (CCA) to reliably start outboard/inboard engines
- • Dual-fit terminal setup simplifies connection for starter cables and auxiliary wiring
- • Versatile for standalone dual-purpose use or dedicated deep-cycle marine banks
Technical Specifications
About Bosch Marine Batteries
Backed by over 100 years of battery experience and 130 years of engineering innovation, Bosch marine batteries are designed to meet the toughest power demands at sea. Whether using a single dual-purpose unit like the HCM series or setting up dedicated starting and heavy-cycling (DCM) battery banks, Bosch delivers uncompromising quality, vibration resistance, and safety for total peace of mind during every voyage.
