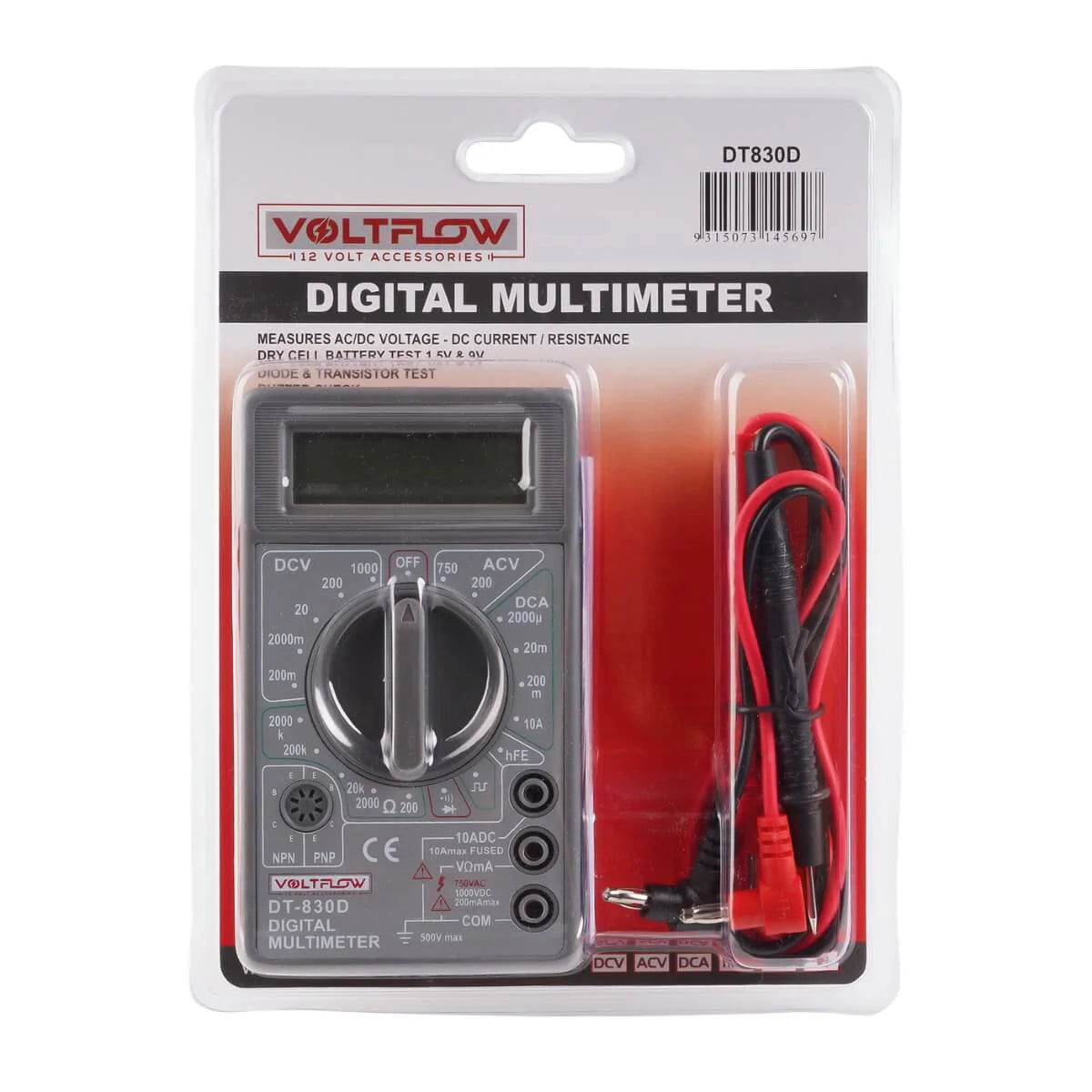

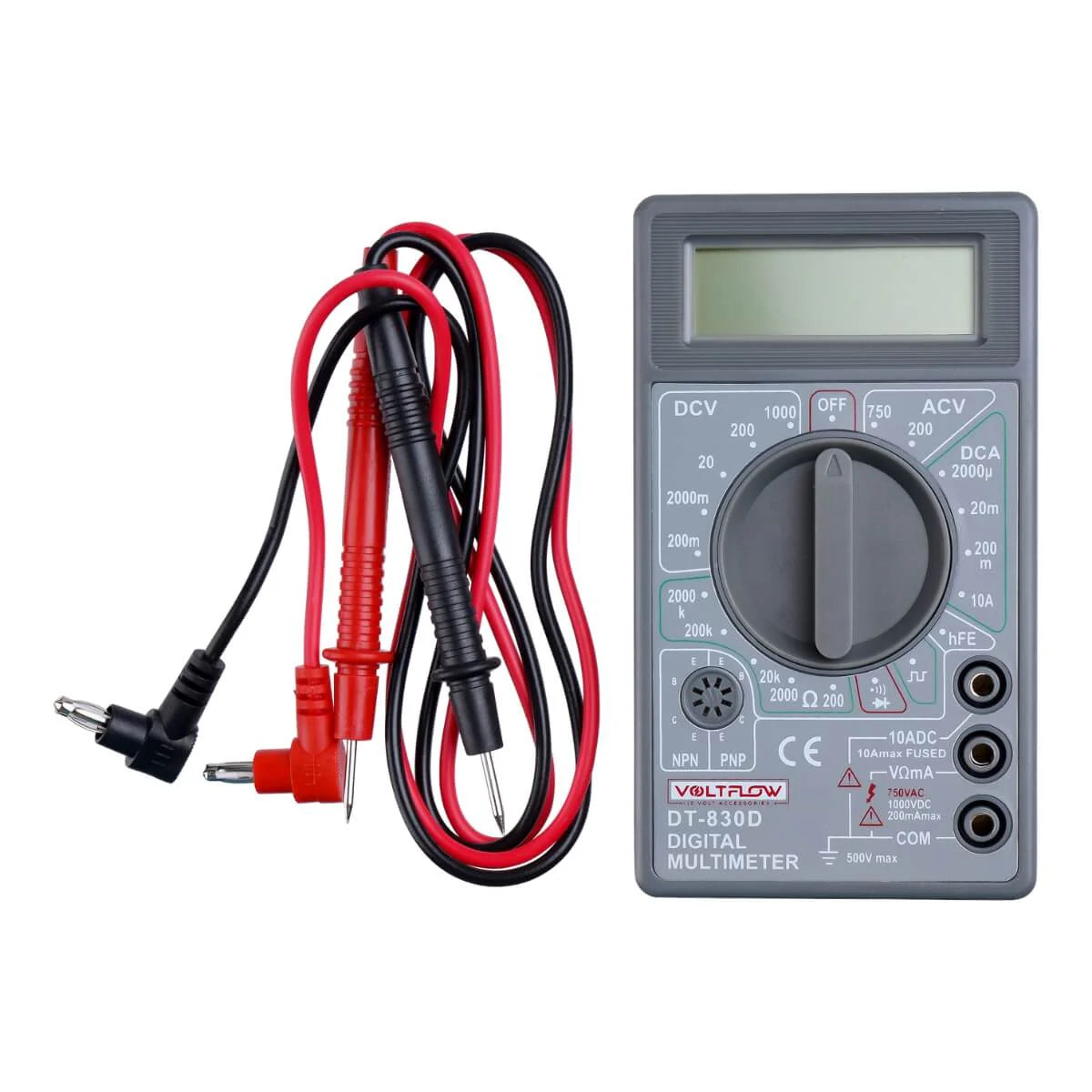

VoltFlow 6V-24V Digital Multimeter With Probe
VoltFlow 6V-24V Digital Multimeter With Probe
VoltFlow's Digital Multimeter with its easy read LCD display is an indispensable tool suitable for testing, diagnosing and troubleshooting electrical circuits, components and devices. It is designed to measure multiple electrical values ensuring accurate digital readings when you're testing AC or DC.
- Easy to use: With a simple twist dial operation, it offers 19 ranges & 7 functions See table below:.
-
9volt Battery: Uses & comes with a 9 Volt battery, with low battery indication light.
-
Included: Insulated probes, 70cm test leads, battery & instruction manual.
|
Specifications |
||||
| L: 126mm x W: 70mm x H: 28mm | ||||
|
Function |
Range |
Resolution |
Accuracy |
Overload Protection |
|
DCV |
200mV |
100uV |
±(0.5%rdg+2dgts) |
500VDC/350VAC |
|
2000mv |
1mV |
1000VDC/750VAC |
||
|
20V |
10mV |
|||
|
200V |
100mV |
|||
|
1000V |
1V |
|||
|
ACV |
200V |
100mV |
±(1.2%rdg+2dgts) |
750VAC |
|
750V |
1V |
|||
|
DCA |
200uA |
100nA |
±(1.0%rdg+2dgts) |
500mA/250V Fuse |
|
2000uA |
1uA |
|||
|
20mA |
10uA |
|||
|
200mA |
100uA |
|||
|
10A |
10mA |
±(1.8%rdg+2dgts) |
10A Unfused |
|
|
Resistor |
200 Ω |
100m Ω |
±(0.8%rdg+2dgts) |
|
|
2000 Ω |
1 Ω |
|||
|
20k Ω |
10 Ω |
|||
|
200k Ω |
100 Ω |
|||
|
2000k Ω |
1k Ω |
|||
|
Transistor |
NPN/PNP |
0-1000 |
Vc ce approx. 3V |
(830B / 832 / 830D /838 / 830E) |
|
Temperature |
-40°C - 1000°C |
1°C |
± (3%rdg+2dgts) |
(838 / 830C / 830E) |
|
Battery Test |
1.5V |
|
Dischargeable current 50mA |
(830A) |
|
9V |
Dischargeable current 5mA |
|||
